Specification and Size

Rating Power	A	B	C	D	L
80W	¦Õ115	160	¦Õ65	55	135
100W	¦Õ115	160	¦Õ65	55	135
120W	¦Õ115	160	¦Õ65	55	135
135W	¦Õ115	160	¦Õ65	55	135
150W	¦Õ118	205	¦Õ65	55	157.5
160W	¦Õ118	205	¦Õ65	55	157.5

Main technical parameters

Structure and Features :

1. Extra lifetime : No filament and electrodes in the bulb , lamp life is only natural attenuation depends on the phosphor , it is the longest of all light sources . The designed life of >=60,000 hours (about 10 years normal use ) , is 10 times than the metal halide lamp .
2. Efficient energy-saving : high efficiency lighting , energy saving effect , and as a result of the use of electronic high-frequency generator , small power consumption , magnetic promise light can save 60% if compared with metal halide lamp and high pressure sodium lamp .
3. Green environmental protection : No flickering , low-glare , the total elimination of eyestrain , the use of mercury in the solid agent , 99% of amalgam material recovery , is the real source of the polution-free green .
4. Color index >=85 , very close to natural light ; color temperature optional , enabling environment for all kinds of different color lighting .
5. Instant start : start-up time <=0.5s , no need to preheat , instant start lighting .
6. Electrical performance : power factor >= 0.98 , a small current harmonic ; applies to wide voltage range , 160v~260v can be stable : in line with national standards for electromagnetic compatibility (GB17743-1999) , without external interference .
7. Anti-shock : As there is no filament and the electrode in the light bulb , the shock will not have an impact on the light bulb , anti-vibration performance .
8. Easy installation : can be installed in any position and direction of performance .

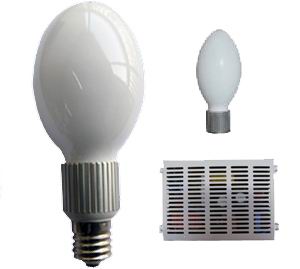

9. EB-LE80??100??120 with E40 lamp holder , which is easily installed in the traditional light fittings usually applied to the HPS and MHL .

Scope of application :
Roads , tunnels , subways , bridges and road lighting , flood lighting of buildings , sports arenas , large square lighting such as high-power sites .
Notes :

1. The rf generator must used together with the same power light bulb .
2. The magnetic promise light must installed with the radiator or thermal discharge by the assembly units reasonable .
3. The length of cable which connect with the bulb can not be cut or extended , or may affect regular service . If need to lengthen or shorten the cable length , customize to the company .
4. The working environmental conditions : -20¡ãC~+60¡ãC.
5. Must cut off power when installed to ensure safety , to confirm correct wiring before power . No-load open circuit or Load short-circuit is forbidden, or ballast will be burned out.
6. If abnormal work ( self-extinguishing , blinking ) , should immediately turn off power supply , maintenance by professionals .
7. High-frequency generator(ballast) output voltage is about 1 KV, the workplace is prohibited under the state of touch.
