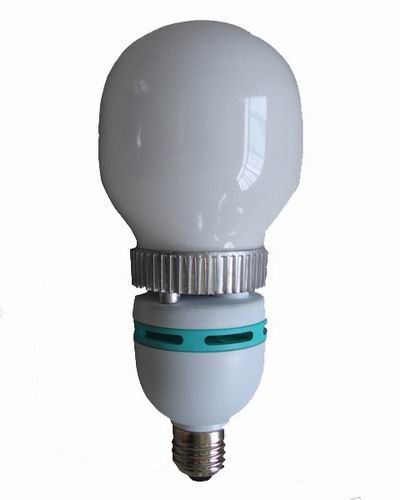

EB-B30

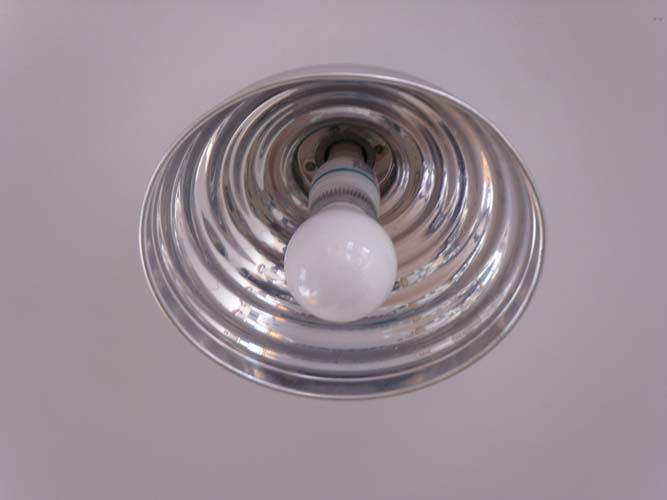

Application Picture:

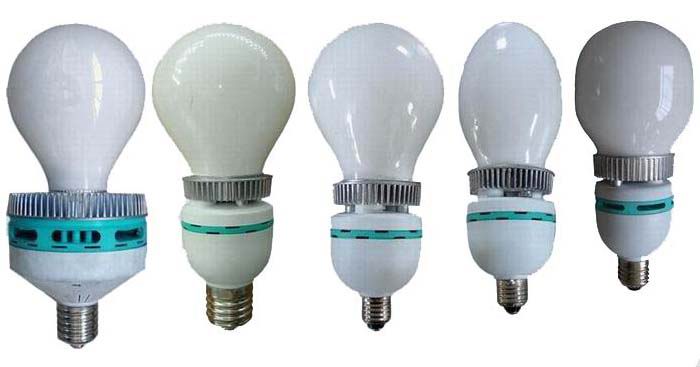

Compact electromagnetic induction lamp features:

1.Long life: there is no electromagnetic induction lamp electrodes, the use of light-emitting principle of electromagnetic induction and gas work. In normal use, life is above 60,000 hours.

2.Efficient energy-saving: Compared with the traditional electric light sources, using electromagnetic induction lamp can save energy 40%~80%.

3.No flicker: a result of electromagnetic induction lamp operating frequency of 2.65MHz, essentially eliminating flicker,

does not cause eye fatigue, protect your eyes health; is truly environmentally friendly "green light."

4.High-Color rendering index: color-rendering index higher than 80, the light-color soft, showing the natural color of the illuminated object.

5.Wide operating voltage range: 160V-265V  voltage  fluctuations  within  the framework  of electromagnetic  induction  lamp can be started as usual and to stability, power,  voltage fluctuations will not be subject to change.

6.May frequently switch: Due to a higher frequency of the work of the electromagnetic coupling,
electromagnetic induction lamp filament to start completely overcome the drawbacks of damaged under
the impact, frequent switching of the lamp life is not in any way.

7.Green Light: Use a solid amalgam, more than 99% recyclable, is the true green light.

8.Quick Start: Due to a higher frequency of the work of the electromagnetic coupling, electromagnetic
induction lamp there is no ordinary mercury lamp, metal halide lamp, fluorescent lamp filament
preheating startup problems, can achieve quick start and re-start.

9.Applicable to a wide temperature range:-30℃~50℃ in the temperature can work properly.

10.Easy maintenance and installation: light bulbs and electrical integration,
 compact design, eliminating the trouble of the assembly, directly connected to ordinary
lamp holder E27 or E40 can be used, saving installation and maintenance labor costs.



Compact electromagnetic induction lamp technology parameters:

Type

Power

(W)

 Voltage

(V)

Current

 (A)

PF

Luminous

(Lm)


Color Temp

(K)

Color
rendering
index

 Start Time

(S)

Ambient Temp

(℃)

Base

Dimensions(mm)

EB-B30

30

220V/110V

~0.14

0.85

18002100

2700~6500

>80

<0.5

-30~+50

E27/E40

∮85*240

EB-B40

40

220V/110V

~0.18

0.85

26003000

2700~6500

>80

<0.5

-30~+50

E27\E40

∮110*270

EB-B50

50

220V/110V

~0.23

0.85

3250~3750

2700~6500

>80

<0.5

-30~+50

E40

∮110*280

EB-B60

60

220V/110V

~0.27

0.85

39004500

2700~6500

>80

<0.5

-30~+50

E40

∮110*280

EB-B80

80

220V/110V

~0.36

0.85

52006000

2700~6500

>80

<0.5

-30~+50

E40

∮130*290
